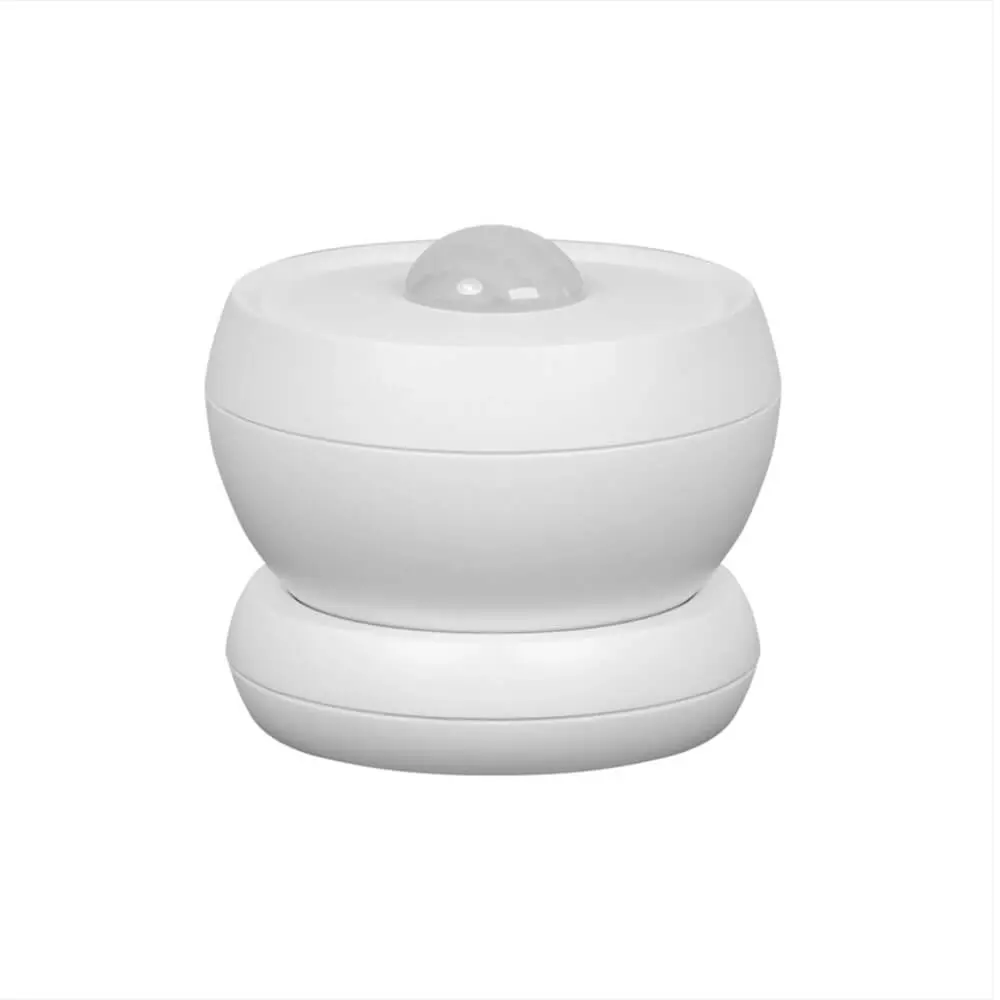

Zigbee Smart PIR Sensor Human Body Infrared Motion Detector With Magnetic Base
SKU: ZSS-S01-PIR-C
| Color | White |
| Connection | Zigbee |
| Brand | MOES |
| Functions | ZIGBEE+Bluetooth |
| Versions | EU |
Enhance your home security with our Zigbee Smart PIR Sensor. This innovative device detects human movement and sends real-time notifications to your app, ensuring you're always in the loop. Featuring a magnetic base design, it offers effortless placement anywhere you need it. With a wide detection range, enjoy a 120° angle coverage and detection distance of up to 8 meters. Powered by a low-energy CR2450 battery, this ZigBee sensor ensures longevity with a remarkable two-year battery life. Keep your home safe and smart with this essential gadget.
- Real-Time Alerts: Instantly notified via MOES app about human activity, keeping you updated anytime.
- Comprehensive Detection: Wide-angle coverage of 120° and a detection range up to 8 meters ensure comprehensive safeguard.
- Long Battery Life: Supports up to 2 years of battery life, minimizing troubles of frequent replacement.
- Smart Linkage: Seamless integration with smart home systems for automated responses to detected events.
- History Records: Detection data for review and analysis, enhancing security measures.
- Note: ZigBee version requires a ZigBee gateway, please purchase separately.
- Product Name: PIR Motion Sensor
- Product Size: ø52mm*46mm (inaccuracies±1mm)
- Input Voltage: 3V
- Battery Specifications: CR2450 (replaceable)
- Communication Method: ZigBee
- Module Model: ZTU Module
- Max RF Power: +10dBm
- Operating Frequency: 2.405~2.480GHz
- Zigbee Standard: IEEE 802.15.4
- Data Transmission Rate: 250Kbps
- Antenna Type: PCB antenna, antenna gain 1.08dBi
- Indicator Light Programme: Single Lamp White
- Operating Temperature: -10℃~+50℃
- Low Battery Warning: Yes
- Scope Of The Survey: 8m
- Probing Angle: 120°
- Packing List
- Sensor body + base*1
- Battery*1
- Screw Pack with Expansion Anchors*1
- Instruction manual*1
- Back adhesive*1
- Small Screw Pack*1
Right Place, Right Convenience
By placing smart sensors in different locations, changes in different locations can be monitored. At the same time, it supports linkage with smart devices to protect every corner of the home.
When Motion/No Motion Detected
When a person is detected, a real-time notification will be sent to the mobile phone. Then, 60 seconds after no one is detected, a notification will be sent also. Different smart linkages can be performed according to the two states, such as the smart light automatically turns on when there is human motion, and automatically turns off when no human motion.
