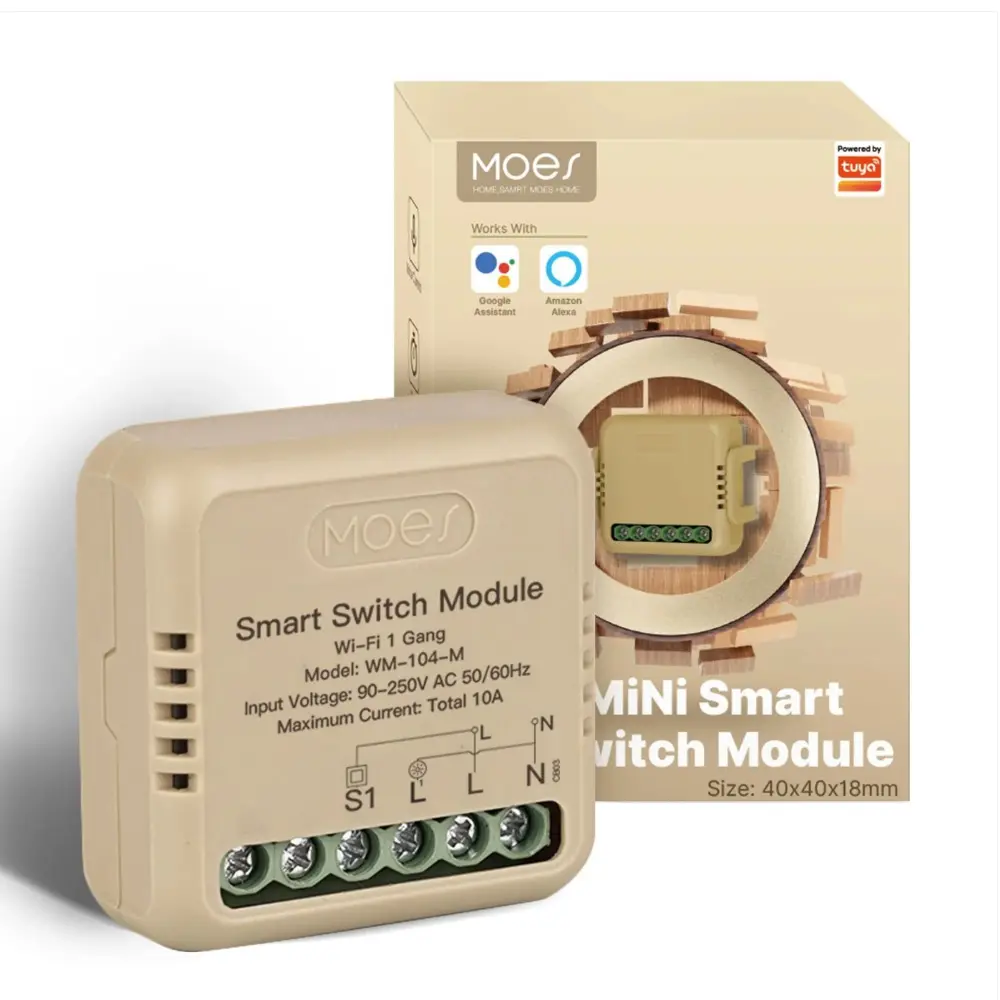

WiFi Mini DIY Smart Light Switch Module Relay Timer 1/2 Gang
SKU: WM-104-M
Mini WiFi smart switch module with relay timer, supports 1 or 2 gang control. Easily control your lights via mobile app or voice assistants for a smart home experience.
| Gang | 1Gang, 2Gang |
| Color | White |
| Connection | Wifi |
| Brand | MOES |
Upgrade your traditional switches to the future with our WiFi Smart Switch Module! This compact marvel, measuring just 40x40x18mm, brings intelligence to your fingertips. Operate efficiently within a voltage range of 90-250V AC at 50/60Hz, ensuring compatibility with a wide range of power systems.Say goodbye to the ordinary and hello to the extraordinary with DIY scheduling and circuit-breaking capabilities.
- TWO SWITCH TYPES OPTIONAL:You can choose from rocker s witch and reset switch freely, perfectly applicable for different home switches.

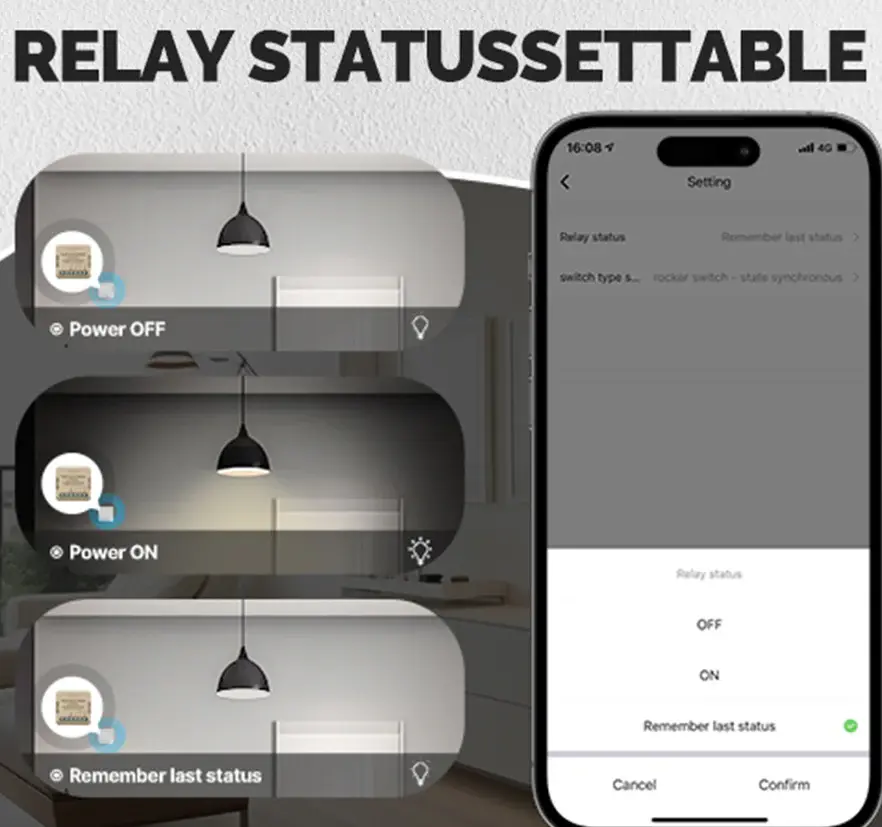

- RELAY STATUS SETTABLE: According to your living habits and needs, set the device on/off after the power on or maintain the original switch state, so that your home equipment can operate normally.

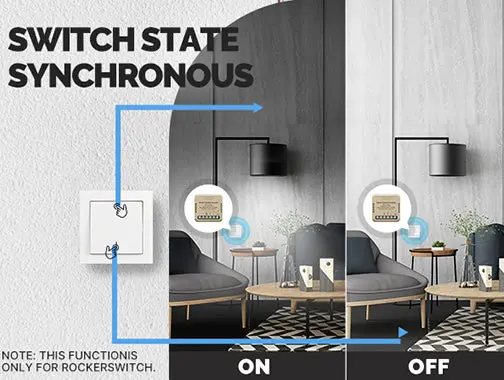

- SWITCH STATE SYNCHRONOUS: Supporting the double control of two matched roker switches. Two operation types of flip to change on/off state and state synchronous can be set. After setting state synchronous, the on/off position is fixed and synchrounous with each switch.

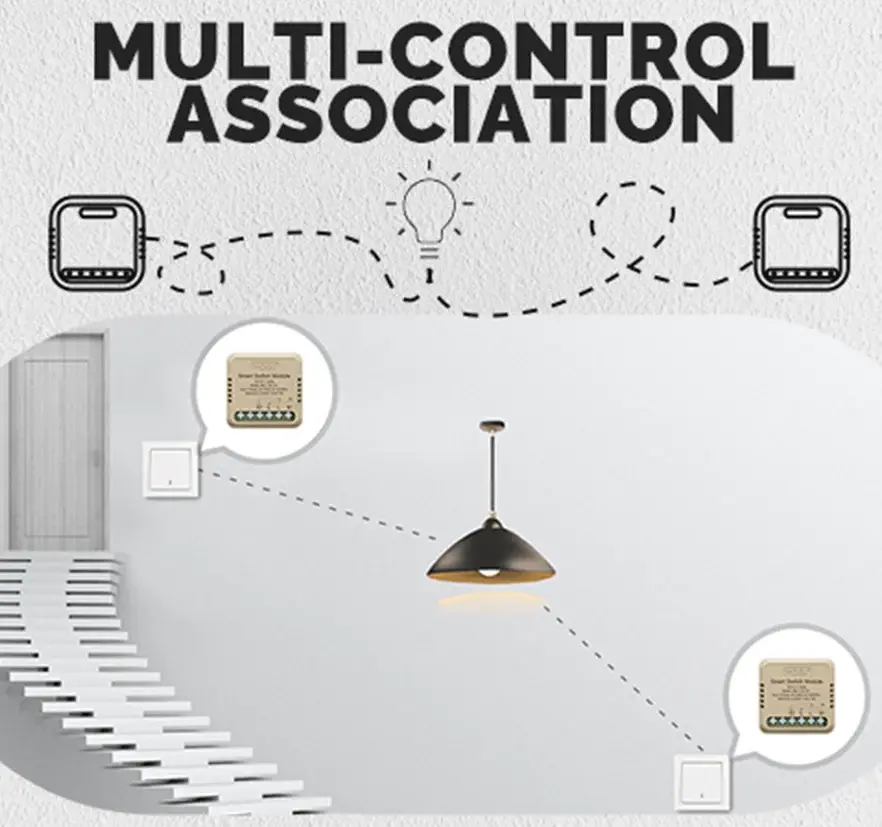

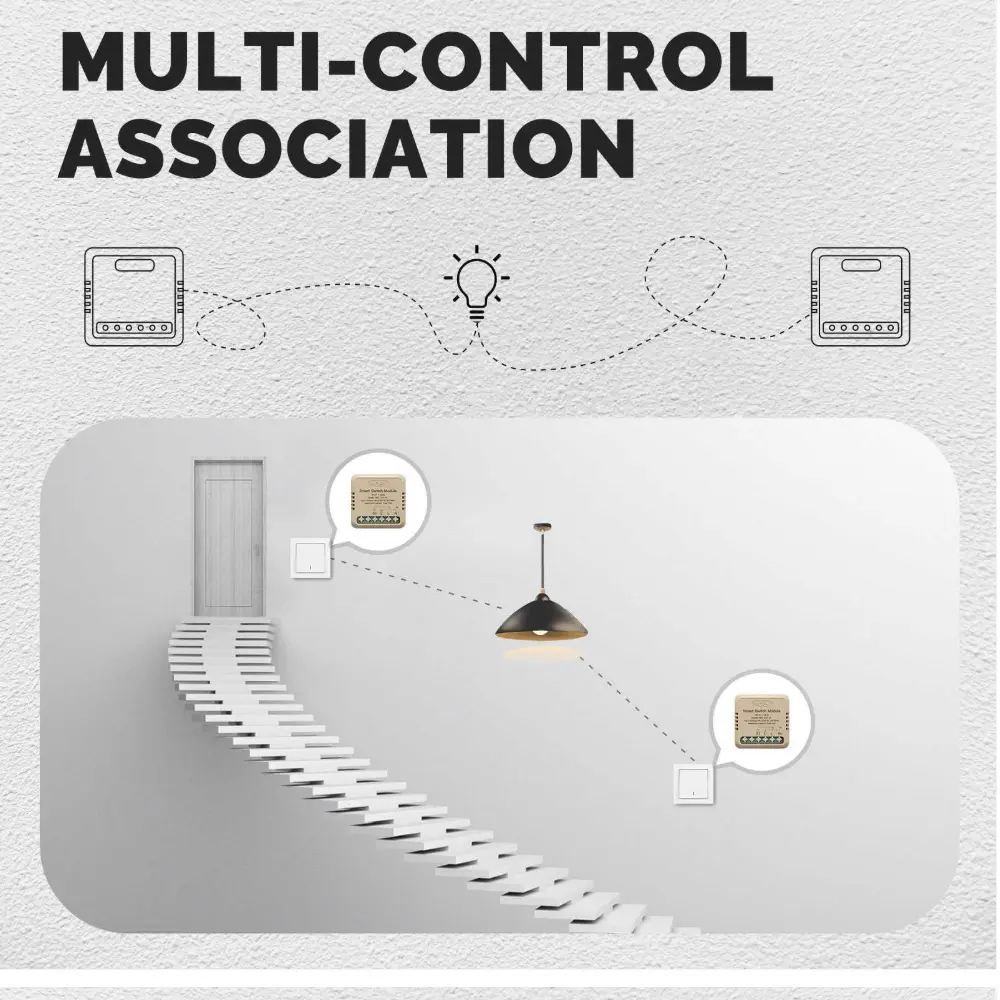

- MULTI-CONTROL ASSOCIATION: No worry about rewiring trouble, you can realize double control or even multiple control on one light after setting in App.

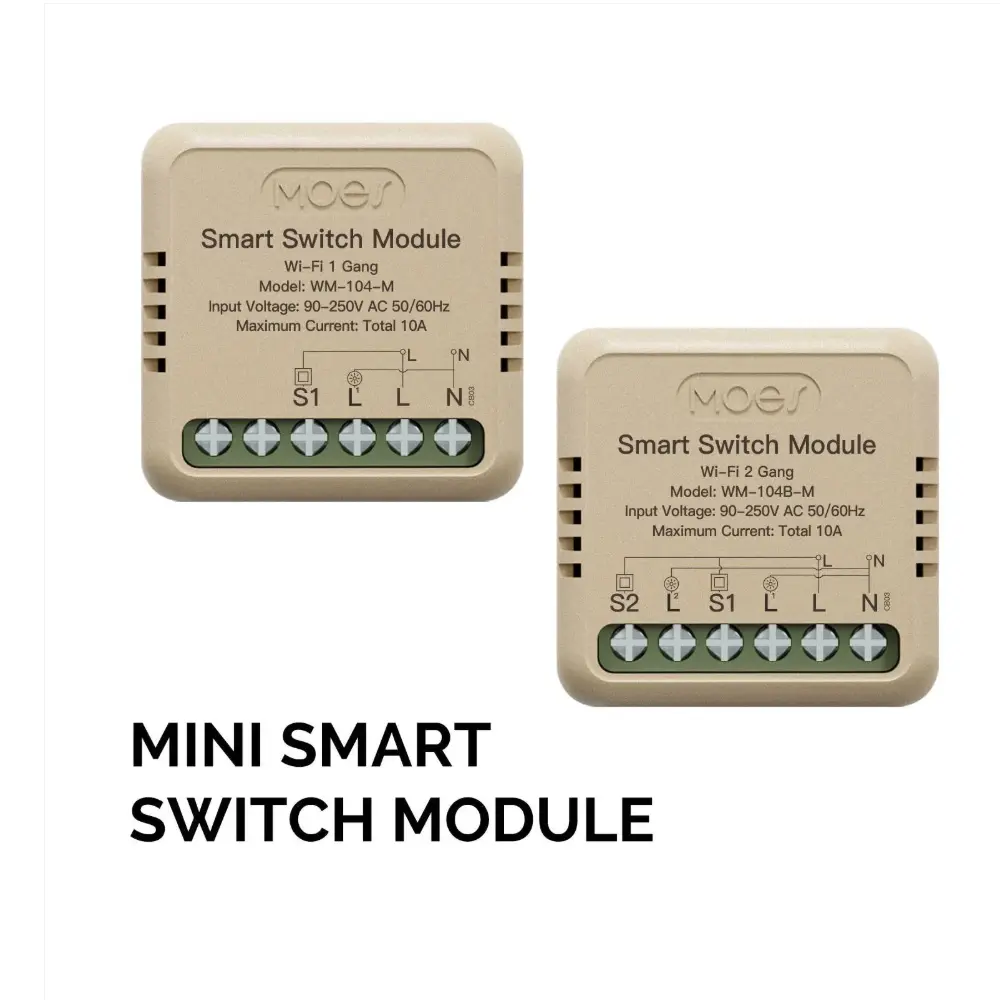

- 2 VERSIONS OF WIFI SWITCH MODULE: Choose your needed witch module of 1 gang and 2 gang . 1-gang switch module can be connected with one switch while 2-gang switch module can be connected with 2-gang switch.
- Model: WM-104-M
- Product: Smart Switch Module
- Wireless Protocol: WiFi
- Voltage: 90-250V AC50/60Hz
- Current: 10A/Gang, Toatal 10A
- Operation Temp: -10℃~65℃
- CaseTemp: Tc: +80℃ (Max)
- Operation Range: ≤70m

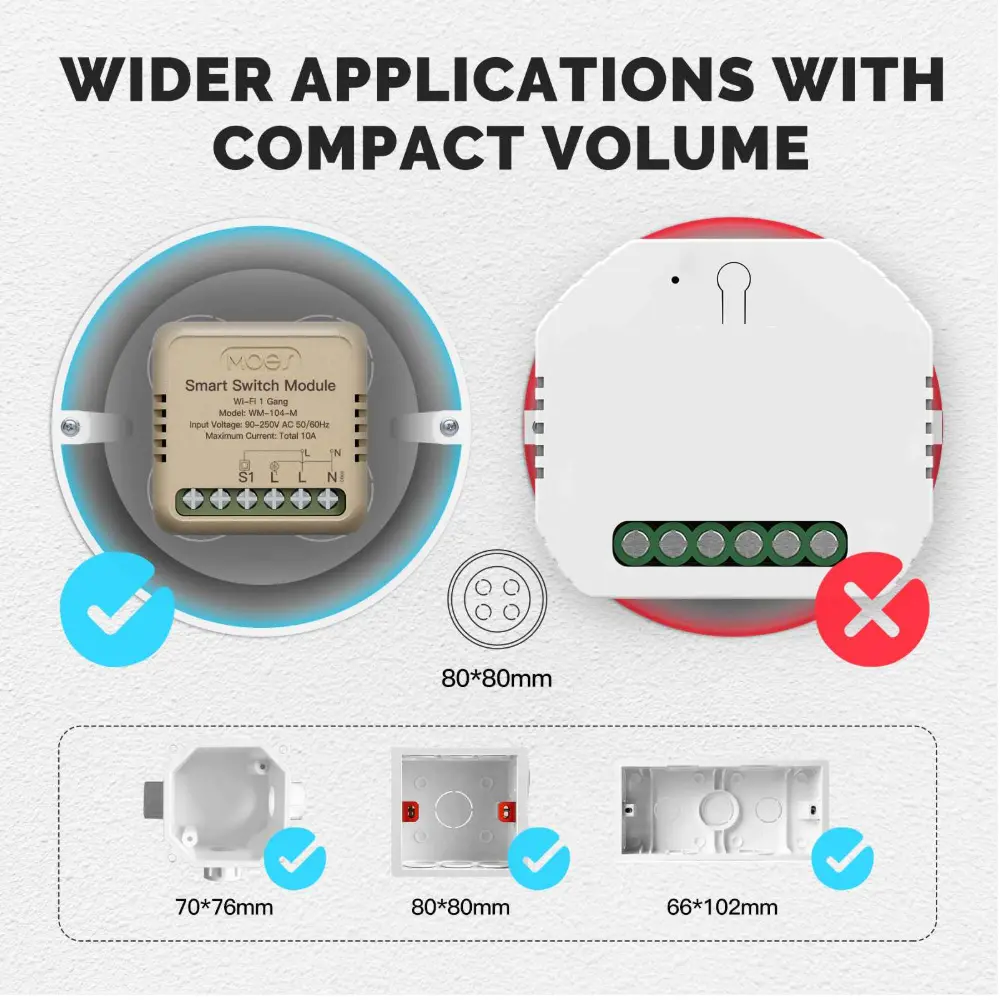

- Dims (WxDxH): 40x40x18mm
- IP Rating: IP20
- PACKING LIST
- Switch Module x1
- Manual x1
