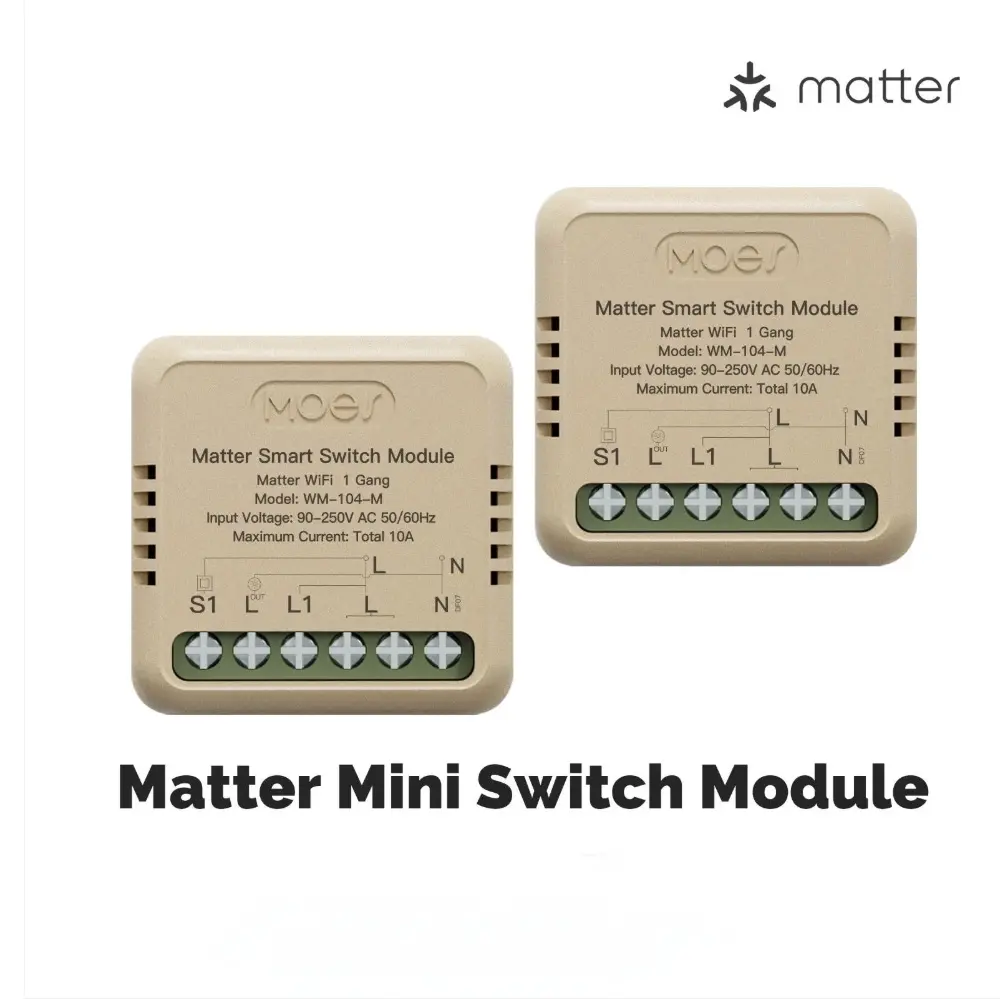

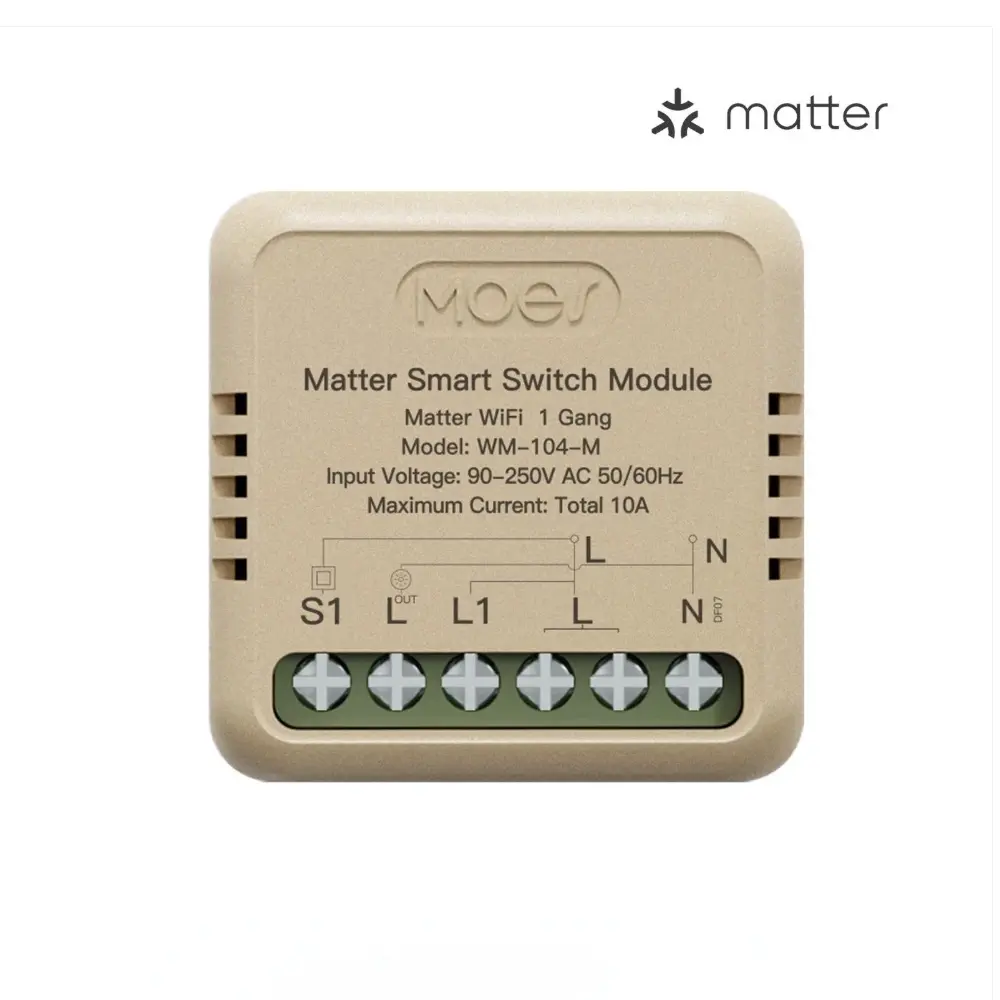

WiFi Matter Mini Smart Switch Module Relay Timer DIY Home Automation
SKU: MWM-104-M
Mini WiFi Matter smart switch module with relay timer, ideal for DIY smart home projects. Control lighting and appliances easily via app or voice assistants.
| Gang | 1Gang, 2Gang |
| Color | White |
| Connection | Matter WIFI |
| Brand | MOES |

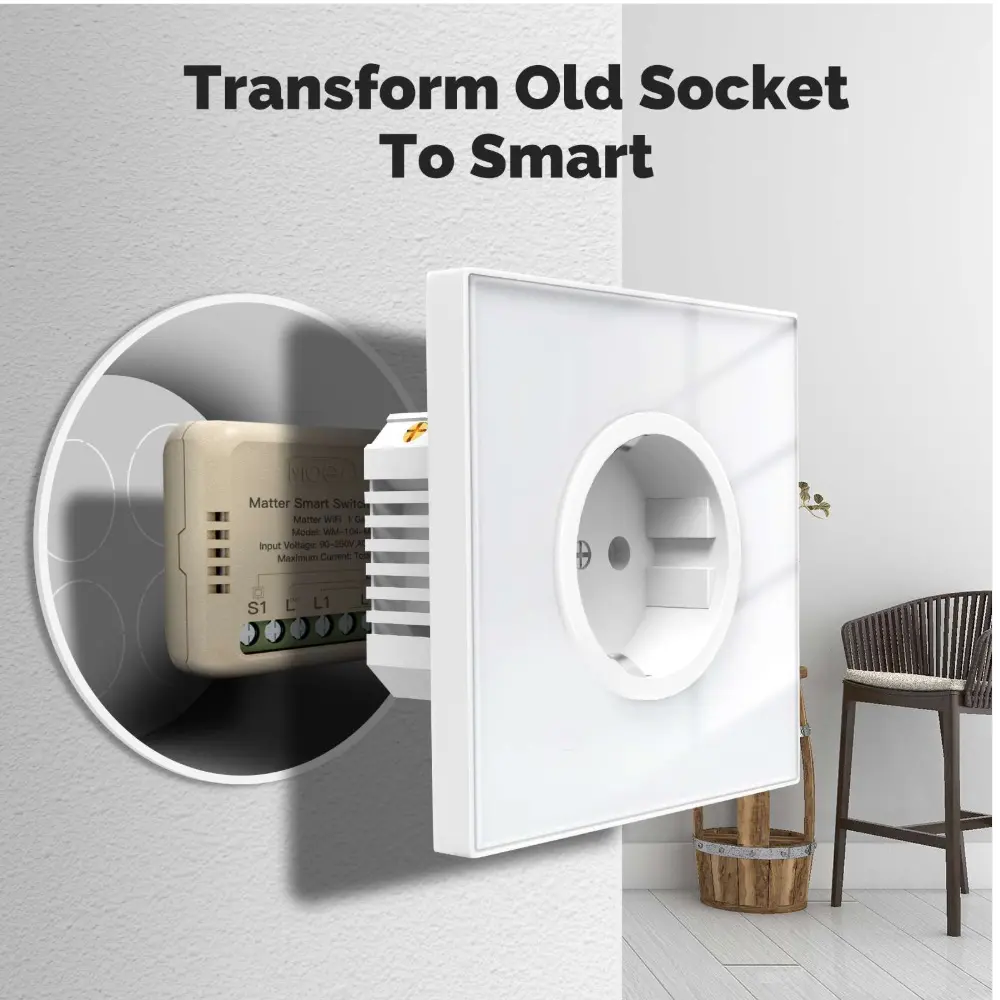

The Matter Switch Module brings your home into the future by upgrading old-fashioned outlets and switches with the latest smart technology. Powered by the Matter protocol, this module ensures seamless integration across various smart home platforms, providing you with ultimate flexibility and reliability.
The Matter Switch Module supports two switch types—toggle switches and momentary switches—and can automatically recognize and adapt to your existing switch setup, making it the perfect choice for upgrading your home without the hassle of rewiring.
Featuring timing functions, voice control, and app remote control, this compact yet powerful module makes controlling your home’s lighting and appliances easier than ever. With an operating voltage of 90-250V and a current rating of 10A, the module can handle a wide range of household devices. Its small size and versatile compatibility make it suitable for virtually any home.
- Matter Compatibility: Supports the latest Matter protocol for seamless device integration.
- Voice Control: Control your switch hands-free with voice commands.
- APP Remote Control: Manage your switch from anywhere using your smartphone.
- Timed Scheduling: Set automatic on/off schedules to fit your routine.
- Multi-Control Association: Connect multiple switches for coordinated control.
- Product Type: Smart Switch Module
- Voltage: 90-250V AC 50/60Hz; 5-30V DC
- Current: 10A/Gang;Total 10A
- Wireless Protocol: Matter WiFi
- Operation Temp.: -10ºC ~ 65ºC
- Case Temp.: Tc: +80ºC (Max.)
- Operation Range: ≤70 m

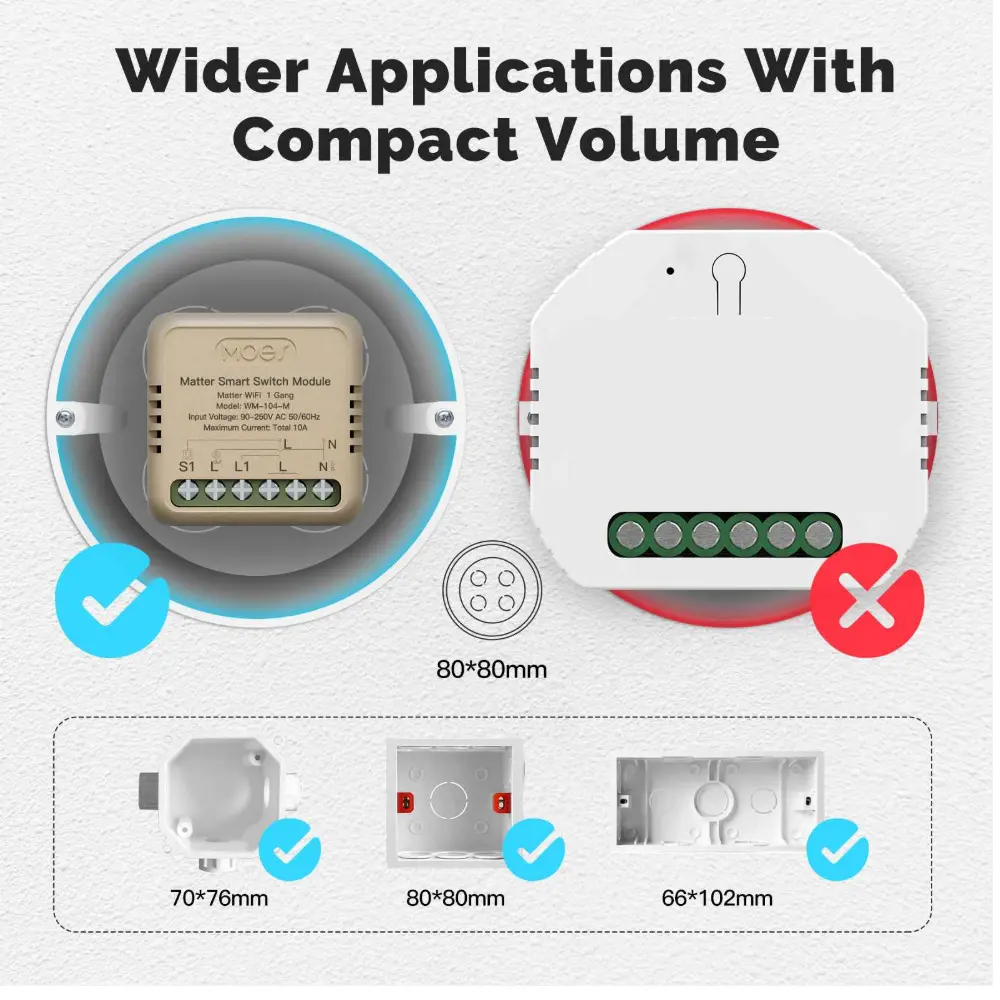

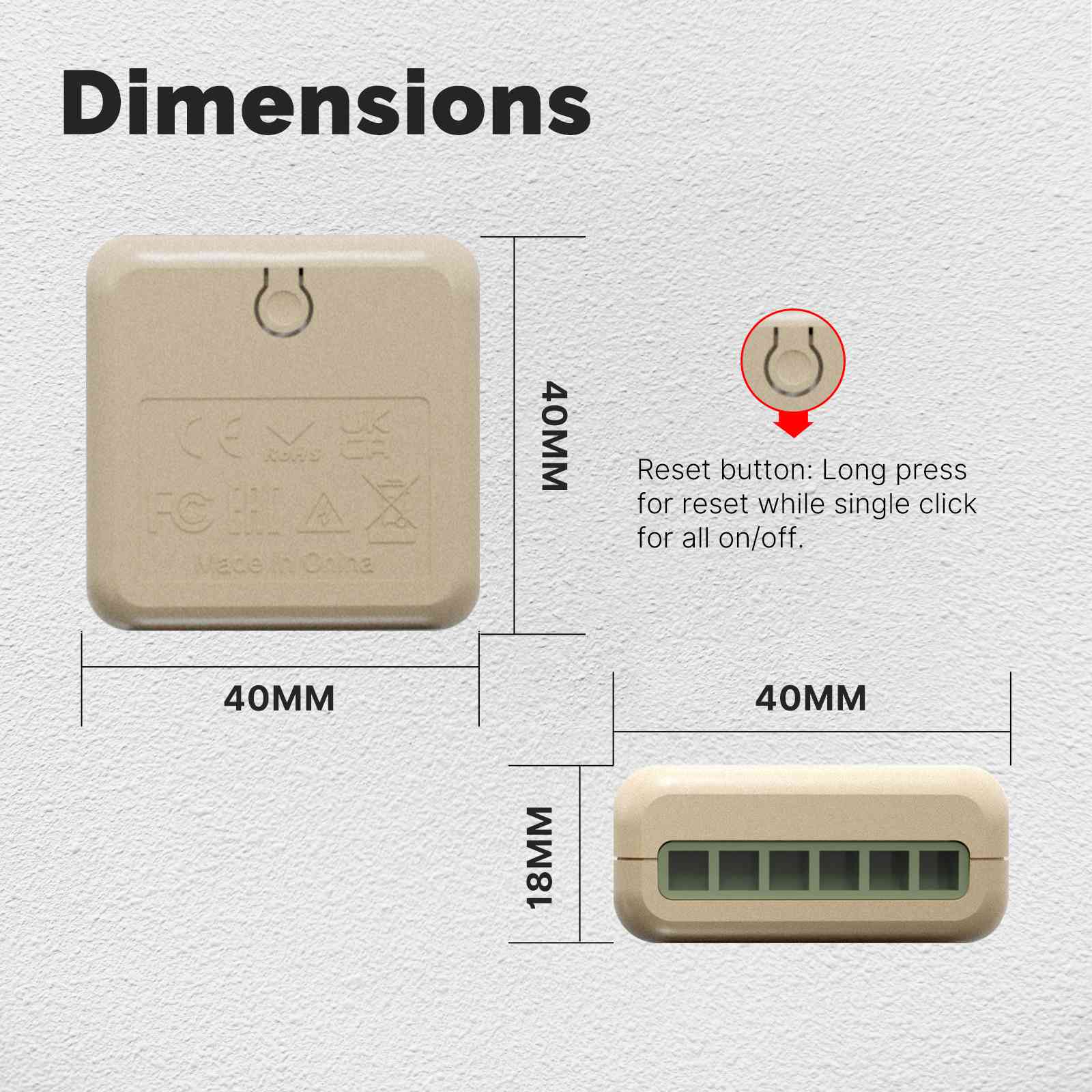

- Dims (WxDxH): 40x40x18 mm
- IP Rating: IP20
- Frequency band: 2.412-2.484GHZ
- Maximum radio transmit power: <+16dBm
- Packing List
- Smart Switch Module *1
- Bracket *1
- User Manual *1
Enhanced Integration and Compatibility
Let's see the innovation that achieves efficiency. Matter-certified MOES devices can be used with Matter-certified products from other brands. These devices are compatible with Matter-enabled platforms, such as Apple Home, Google Home, and Alexa.

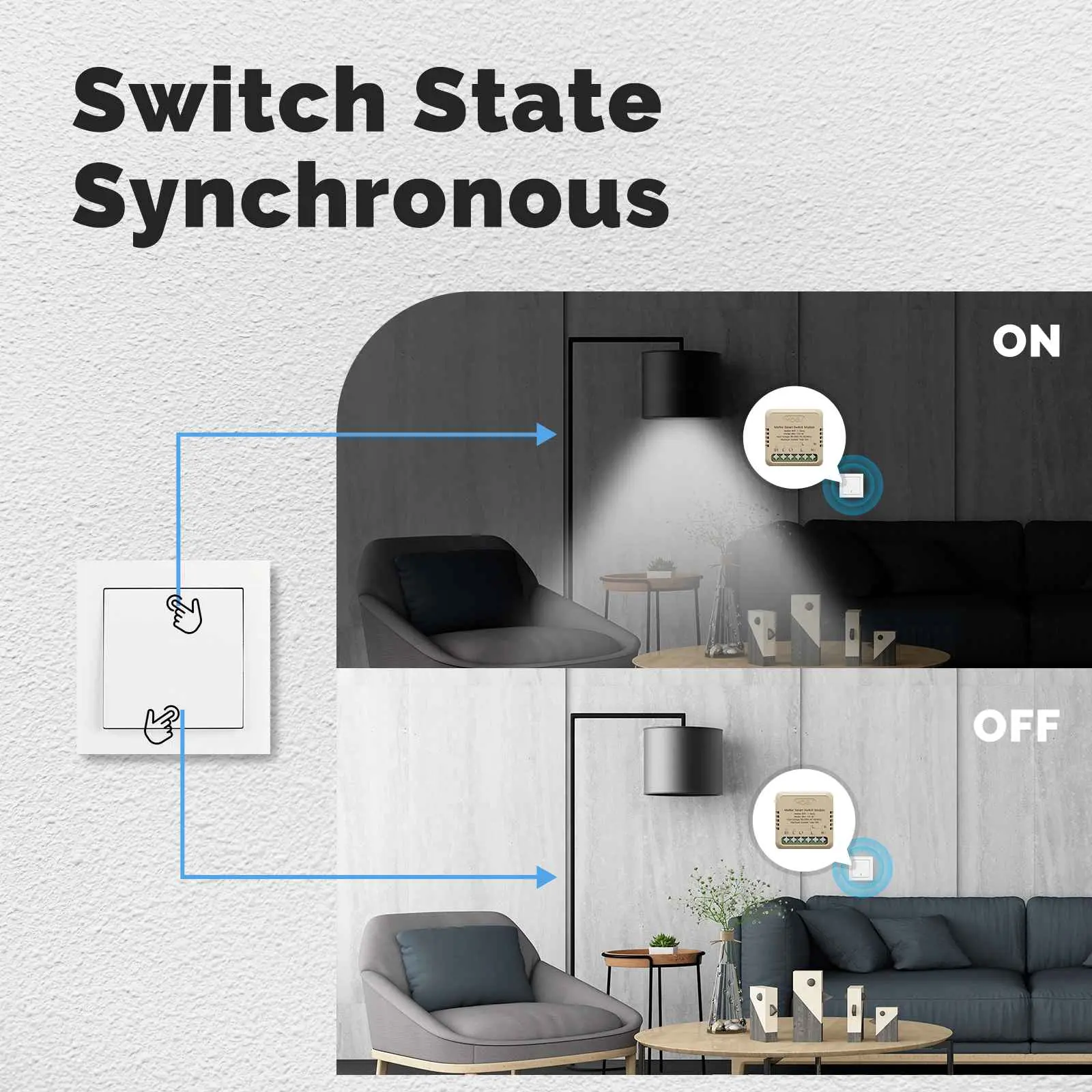

Switch State Synchronous
The loaded devices can be controlled according to the original on/off state of the wired switch. After setting the state synchronization, the on/off operation position is fixed and will not change due to the on/off operation of the APP.
Note: This function is only for rocker switch.
